NSK ASS206N
Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
ASS206N
Included products
Bearing

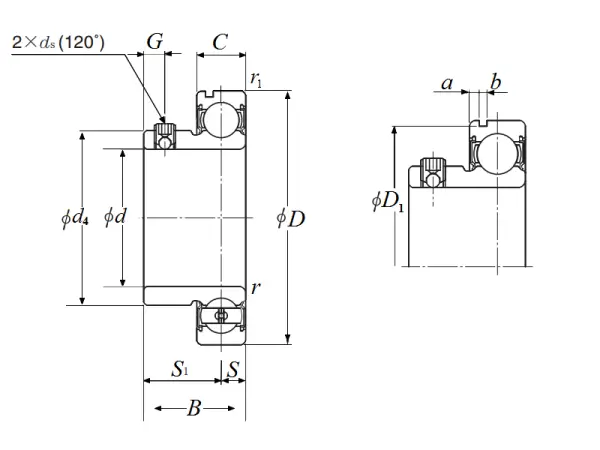

Nominal Dimensions
d
30
mm
Bore diameter
D
62
mm
Outside diameter
B,B4
29
mm
Width of inner ring
C
16
mm
Outer ring width
r(min.)
1
mm
Chamfer dimension
r1(min.)
0.6
mm
Chamfer dimension
S1
21
mm
Distance from locking device side face to raceway centre
G
5
mm
Distance face to thread centre
ds
M6×0.75
Set screw
d4
40.8
mm
Outside diameter of inner ring
D1
59.61
mm
Diameter of snap ring groove
a
3.18
mm
Distance outer ring from side face to snap ring groove
b
2.05
mm
Width of snap ring groove
Basic Load Ratings
Cr
19.5
kN
Basic dynamic load rating
C0r
11.3
kN
Basic static load rating
Mass
Mass approx.
0.31
kg
Mass approx.
