NSK AW40
Lock-Washer
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
AW40
Shaft diameter (Reference)
d
200
mm
Shaft diameter (Reference)

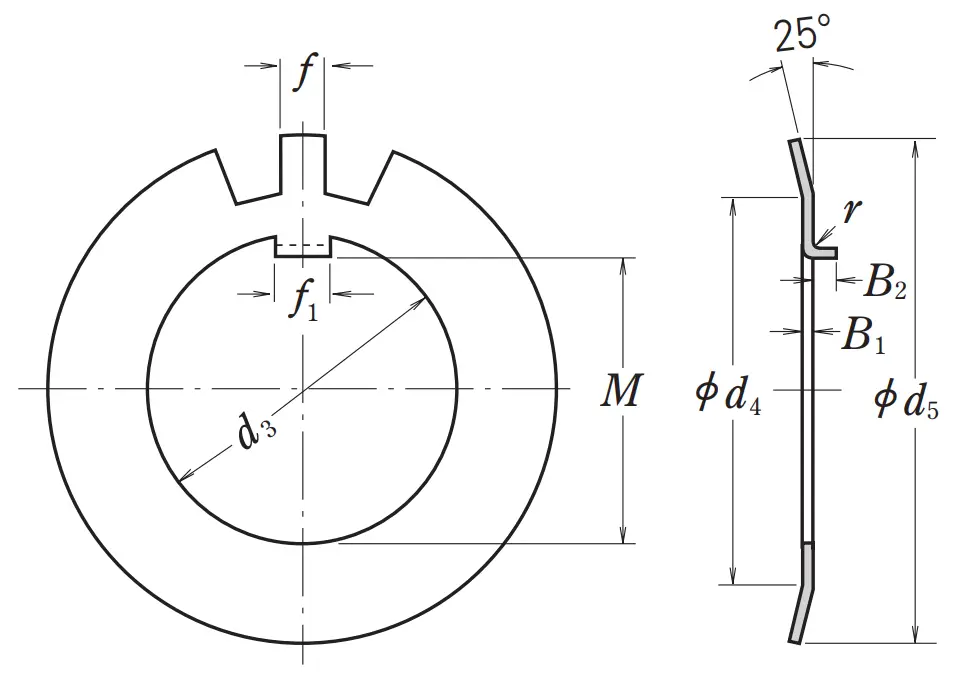

Basic Dimensions
d3
200
mm
Bore diameter
d5
262
mm
Outside diameter
B1
2.5
mm
Thickness material
M
194
mm
Inside dimension under inner tab
f1
20
mm
Width inner tab
f
18
mm
Width outer tab
d4
226
mm
Side face diameter
r
1.5
mm
Bent-Tab chanfer
B2
8
mm
Bent-Tab height
19
Number of Teeth
Mass
Mass
29.3
kg
Mass (approx.:per 100 pcs)
