NSK C-UCFL212D1
Oval Flanged Units
(BRAND)：NSK
(Availability)：In Stock
Designations
C-UCFL212D1
Included products
Bearing
Housing
FL212D1
Housing

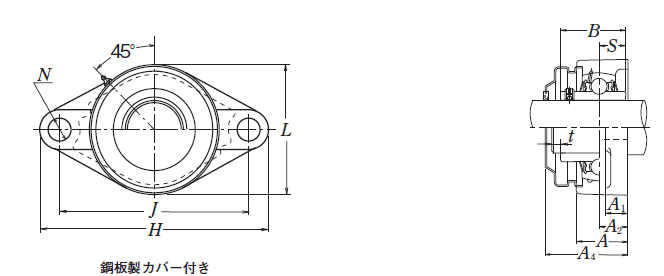

Nominal Dimensions
d
60
mm
Bore diameter
L,L1
144
mm
Overall height
J
202
mm
Distance between attachment bolts
N
23
mm
Diameter of attachment bolt hole
A2
29
mm
Flange width
A1
18
mm
Flange width
A5
86
mm
Width including end cover
B,B1,B2
65.1
mm
Width of inner ring
t
4
mm
Clearance
H
250
mm
Overall length
L2
70
mm
Height of spherical seat centre
S
25.4
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M20
Bolt size
Basic Load Ratings
Cr
52.5
kN
Basic dynamic load rating
C0r
36
kN
Basic static load rating
Mass
mass
4.6
kg
Mass approx.
