NSK C-UCFL215D1
Oval Flanged Units
(BRAND)：NSK
(Availability)：In Stock
Designations
C-UCFL215D1
Included products
Bearing
Housing
FL215D1
Housing

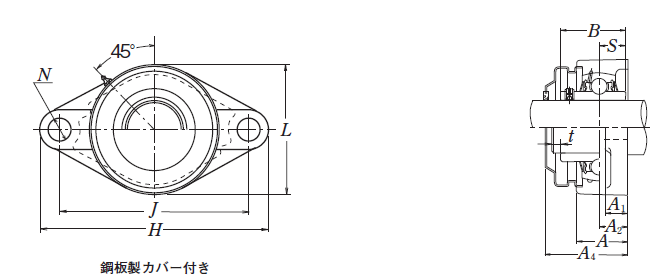

Nominal Dimensions
d
75
mm
Bore diameter
L,L1
169
mm
Overall height
J
225
mm
Distance between attachment bolts
N
23
mm
Diameter of attachment bolt hole
A2
34
mm
Flange width
A1
22
mm
Flange width
A5
102
mm
Width including end cover
B,B1,B2
77.8
mm
Width of inner ring
t
4
mm
Clearance
H
275
mm
Overall length
L2
82.5
mm
Height of spherical seat centre
S
33.3
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M20
Bolt size
Basic Load Ratings
Cr
66
kN
Basic dynamic load rating
C0r
49.5
kN
Basic static load rating
Mass
mass
7.1
kg
Mass approx.
