NSK C-UCFL216D1
Oval Flanged Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
C-UCFL216D1
Included products
Bearing
Housing
FL216D1
Housing

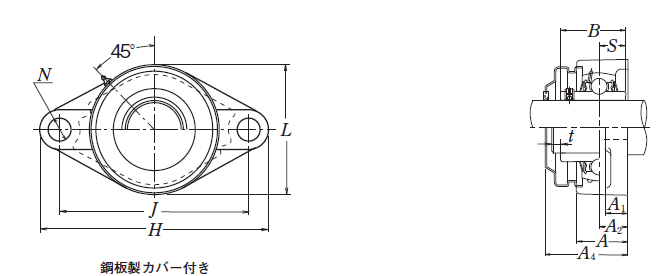

Nominal Dimensions
d
80
mm
Bore diameter
L,L1
183
mm
Overall height
J
233
mm
Distance between attachment bolts
N
25
mm
Diameter of attachment bolt hole
A2
34
mm
Flange width
A1
22
mm
Flange width
A5
106
mm
Width including end cover
B,B1,B2
82.6
mm
Width of inner ring
t
4
mm
Clearance
H
290
mm
Overall length
L2
90
mm
Height of spherical seat centre
S
33.3
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M22
Bolt size
Basic Load Ratings
Cr
72.5
kN
Basic dynamic load rating
C0r
53
kN
Basic static load rating
Mass
mass
8.6
kg
Mass approx.
