NSK C-UCFL319D1
Oval Flanged Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
C-UCFL319D1
Included products
Bearing
Housing
FL319D1
Housing

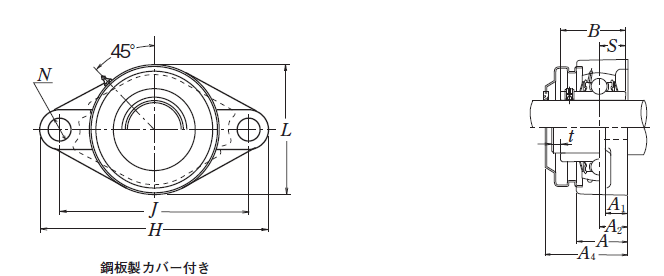

Nominal Dimensions
d
95
mm
Bore diameter
L,L1
260
mm
Overall height
J
330
mm
Distance between attachment bolts
N
41
mm
Diameter of attachment bolt hole
A2
59
mm
Flange width
A1
40
mm
Flange width
A5
149
mm
Width including end cover
B,B1,B2
103
mm
Width of inner ring
t
5
mm
Clearance
H
405
mm
Overall length
L2
125
mm
Height of spherical seat centre
S
41
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M36
Bolt size
Basic Load Ratings
Cr
153
kN
Basic dynamic load rating
C0r
119
kN
Basic static load rating
Mass
mass
26
kg
Mass approx.
