NSK C-UCFL320D1
Oval Flanged Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
C-UCFL320D1
Included products
Bearing
Housing
FL320D1
Housing

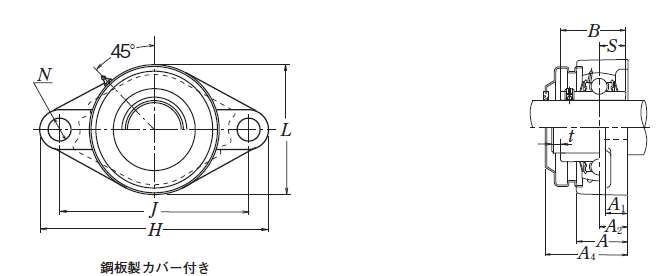

Nominal Dimensions
d
100
mm
Bore diameter
L,L1
280
mm
Overall height
J
360
mm
Distance between attachment bolts
N
44
mm
Diameter of attachment bolt hole
A2
59
mm
Flange width
A1
40
mm
Flange width
A5
154
mm
Width including end cover
B,B1,B2
108
mm
Width of inner ring
t
5
mm
Clearance
H
440
mm
Overall length
L2
135
mm
Height of spherical seat centre
S
42
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M39
Bolt size
Basic Load Ratings
Cr
173
kN
Basic dynamic load rating
C0r
141
kN
Basic static load rating
Mass
mass
31
kg
Mass approx.
