NSK C-UCFLX10D1
Oval Flanged Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
C-UCFLX10D1
Included products
Bearing
Housing
FLX10D1
Housing

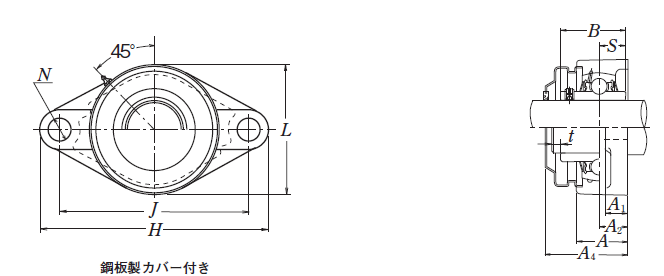

Nominal Dimensions
d
50
mm
Bore diameter
L,L1
133.5
mm
Overall height
J
184
mm
Distance between attachment bolts
N
19
mm
Diameter of attachment bolt hole
A2
26
mm
Flange width
A1
18
mm
Flange width
A5
76
mm
Width including end cover
B,B1,B2
55.6
mm
Width of inner ring
t
3
mm
Clearance
H
216
mm
Overall length
L2
66.5
mm
Height of spherical seat centre
S
22.2
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M16
Bolt size
Basic Load Ratings
Cr
43.5
kN
Basic dynamic load rating
C0r
29.2
kN
Basic static load rating
Mass
mass
3.6
kg
Mass approx.
