NSK C-UCP312D1
Pillow Block Bearing Units
(BRAND)：NSK
(Availability)：In Stock
Designations
C-UCP312D1
Included products
Bearing
Housing
P312D1
Housing

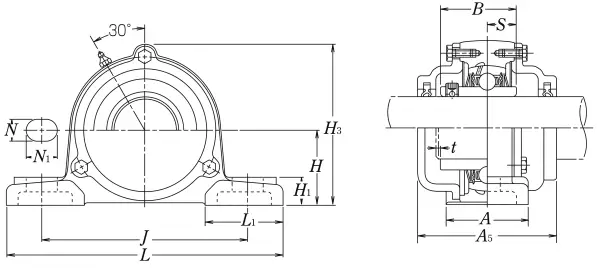

Nominal Dimensions
d
60
mm
Bore diameter
N1
38
mm
Length of attachment bolt hole
L
330
mm
Overall length
H
85
mm
Height of spherical seat centre
H3
179
mm
Overall height
J
250
mm
Distance between attachment bolts
N
25
mm
Diameter of attachment bolt hole
A
85
mm
Base width
A5
135
mm
Width including end cover
t
4
mm
Clearance
H1
32
mm
Distance between bottoms of piloting grooves
B
71
mm
Width of inner ring
S
26
mm
Distance from Opposite side face of locking device to raceway centre
L1
95
mm
Foot width
H2
165
mm
Overall height
Mounting information
G
M20
Bolt size
Basic Load Ratings
Cr
82
kN
Basic dynamic load rating
C0r
52
kN
Basic static load rating
Mass
mass
12
kg
Mass approx.
