NSK C-UKFL205D1
Oval Flanged Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
C-UKFL205D1
Included products
Bearing
Housing
FL205D1
Housing
Associated products
Adapter sleeve

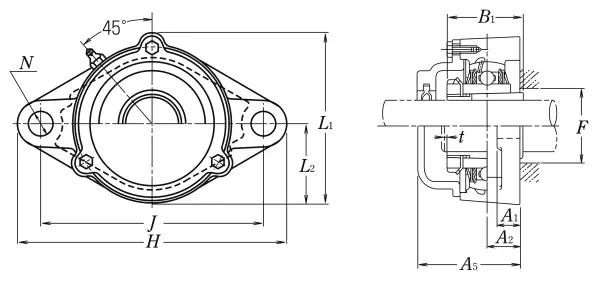

Nominal Dimensions
d
20
mm
Bore diameter
L,L1
74
mm
Overall height
J
99
mm
Distance between attachment bolts
N
16
mm
Diameter of attachment bolt hole
A2
16
mm
Flange width
A1
13
mm
Flange width
A5
51
mm
Width including end cover
B,B1,B2
35
mm
Width of inner ring
F
30
mm
Diameter of housing abutment
t
2
mm
Clearance
H
130
mm
Overall length
L2
34
mm
Height of spherical seat centre
Mounting information
G
M14
Bolt size
Basic Load Ratings
Cr
14
kN
Basic dynamic load rating
C0r
7.85
kN
Basic static load rating
