NSK C-UKFL310D1
Oval Flanged Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
C-UKFL310D1
Included products
Bearing
Housing
FL310D1
Housing
Associated products
Adapter sleeve

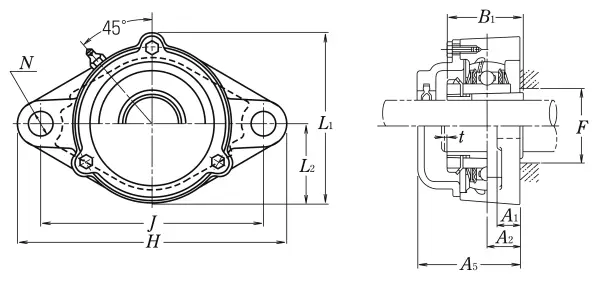

Nominal Dimensions
d
45
mm
Bore diameter
L,L1
152
mm
Overall height
J
187
mm
Distance between attachment bolts
N
28
mm
Diameter of attachment bolt hole
A2
28
mm
Flange width
A1
19
mm
Flange width
A5
88
mm
Width including end cover
B,B1,B2
55
mm
Width of inner ring
t
3
mm
Clearance
H
240
mm
Overall length
L2
70
mm
Height of spherical seat centre
Mounting information
G
M22
Bolt size
Basic Load Ratings
Cr
62
kN
Basic dynamic load rating
C0r
38.5
kN
Basic static load rating
