NSK C-UKP206D1
Pillow Block Bearing Units
(BRAND)：NSK
(Availability)：In Stock
Designations
C-UKP206D1
Included products
Bearing
Housing
P206D1
Housing
Associated products
Adapter sleeve

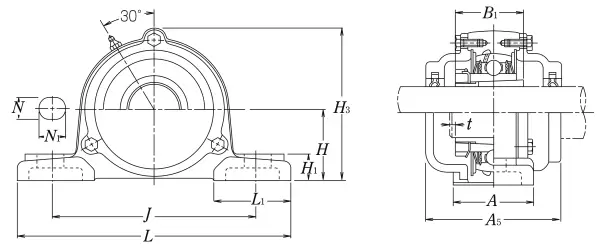

Nominal Dimensions
d
25
mm
Bore diameter
N1
20
mm
Length of attachment bolt hole
L
165
mm
Overall length
H
42.9
mm
Height of spherical seat centre
H3
88
mm
Overall height
J
121
mm
Distance between attachment bolts
N
17
mm
Diameter of attachment bolt hole
A
48
mm
Base width
A5
75
mm
Width including end cover
t
2
mm
Clearance
H1
17
mm
Distance between bottoms of piloting grooves
B1
38
mm
Width of inner ring
L1
54
mm
Foot width
Mounting information
G
M14
Bolt size
Basic Load Ratings
Cr
19.5
kN
Basic dynamic load rating
C0r
11.3
kN
Basic static load rating
