NSK C-UKP209D1
Pillow Block Bearing Units
(BRAND)：NSK
(Availability)：In Stock
Designations
C-UKP209D1
Included products
Bearing
Housing
P309D1
Housing
Associated products
Adapter sleeve

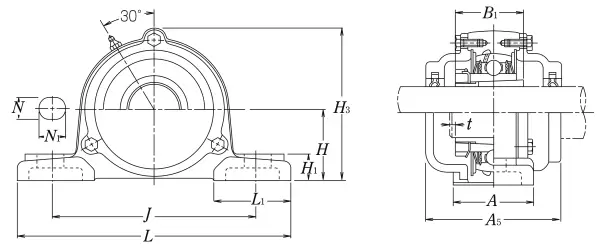

Nominal Dimensions
d
40
mm
Bore diameter
N1
20
mm
Length of attachment bolt hole
L
190
mm
Overall length
H
54
mm
Height of spherical seat centre
H3
113
mm
Overall height
J
146
mm
Distance between attachment bolts
N
17
mm
Diameter of attachment bolt hole
A
54
mm
Base width
A5
95
mm
Width including end cover
t
3
mm
Clearance
H1
20
mm
Distance between bottoms of piloting grooves
B1
50
mm
Width of inner ring
L1
60
mm
Foot width
Mounting information
G
M14
Bolt size
Basic Load Ratings
Cr
32.5
kN
Basic dynamic load rating
C0r
20.4
kN
Basic static load rating
