NSK C-UKP305D1
Pillow Block Bearing Units
(BRAND)：NSK
(Availability)：In Stock
Designations
C-UKP305D1
Included products
Bearing
Housing
P305D1
Housing
Associated products
Adapter sleeve

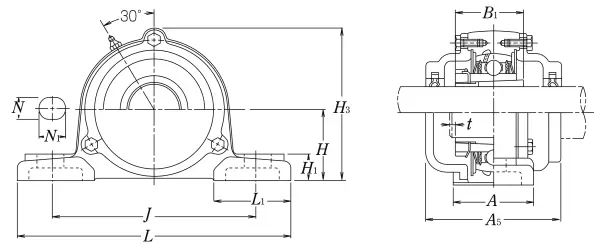

Nominal Dimensions
d
20
mm
Bore diameter
N1
20
mm
Length of attachment bolt hole
L
175
mm
Overall length
H
45
mm
Height of spherical seat centre
H3
91
mm
Overall height
J
132
mm
Distance between attachment bolts
N
17
mm
Diameter of attachment bolt hole
A
45
mm
Base width
A5
80
mm
Width including end cover
t
2
mm
Clearance
H1
15
mm
Distance between bottoms of piloting grooves
B1
35
mm
Width of inner ring
L1
54
mm
Foot width
Mounting information
G
M14
Bolt size
Basic Load Ratings
Cr
21.2
kN
Basic dynamic load rating
C0r
10.9
kN
Basic static load rating
