NSK C-UKP312D1
Pillow Block Bearing Units
(BRAND)：NSK
(Availability)：In Stock
Designations
C-UKP312D1
Included products
Bearing
Housing
P312D1
Housing
Associated products
Adapter sleeve

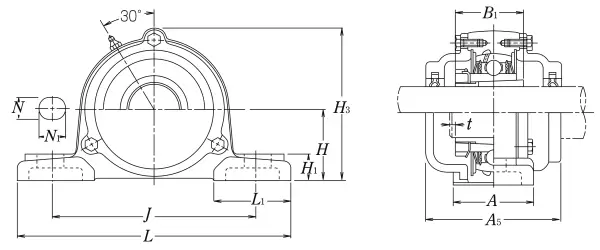

Nominal Dimensions
d
55
mm
Bore diameter
N1
38
mm
Length of attachment bolt hole
L
330
mm
Overall length
H
85
mm
Height of spherical seat centre
H3
179
mm
Overall height
J
250
mm
Distance between attachment bolts
N
25
mm
Diameter of attachment bolt hole
A
85
mm
Base width
A5
135
mm
Width including end cover
t
4
mm
Clearance
H1
32
mm
Distance between bottoms of piloting grooves
B1
62
mm
Width of inner ring
L1
95
mm
Foot width
H2
165
mm
Overall height
Mounting information
G
M20
Bolt size
Basic Load Ratings
Cr
82
kN
Basic dynamic load rating
C0r
52
kN
Basic static load rating
