NSK C-UKP320D1
Pillow Block Bearing Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
C-UKP320D1
Included products
Bearing
Housing
P320D1
Housing
Associated products
Adapter sleeve

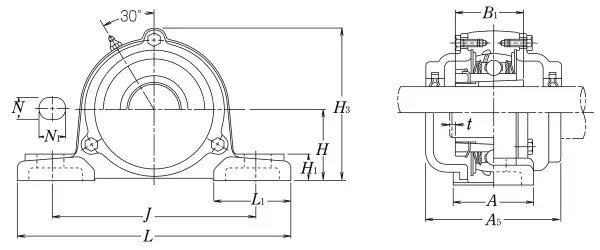

Nominal Dimensions
d
90
mm
Bore diameter
N1
50
mm
Length of attachment bolt hole
L
490
mm
Overall length
H
140
mm
Height of spherical seat centre
H3
283
mm
Overall height
J
380
mm
Distance between attachment bolts
N
36
mm
Diameter of attachment bolt hole
A
120
mm
Base width
A5
190
mm
Width including end cover
t
5
mm
Clearance
H1
50
mm
Distance between bottoms of piloting grooves
B1
97
mm
Width of inner ring
L1
130
mm
Foot width
H2
275
mm
Overall height
Mounting information
G
M30
Bolt size
Basic Load Ratings
Cr
173
kN
Basic dynamic load rating
C0r
141
kN
Basic static load rating
