NSK C-UKT326D1
Take-up Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
C-UKT326D1
Included products
Bearing
Housing
T326D1
Housing
Associated products
Adapter sleeve

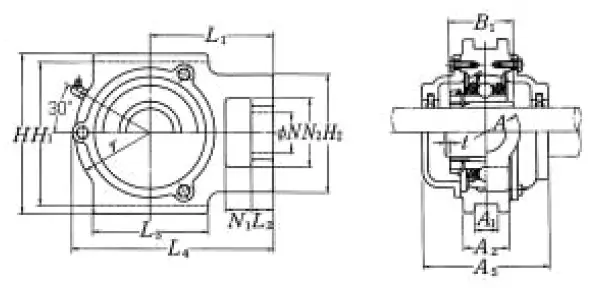

Nominal Dimensions
d
115
mm
Bore diameter
L,L4
476
mm
Overall length
L4
476
mm
Overall length
H2
220
mm
Height of attachment end
H
385
mm
Overall height
N2
150
mm
Height of attachment slot
N1
65
mm
Length of attachment slot
N
75
mm
Diameter of attachment bolt hole
L3
240
mm
Length of piloting groove
L2
240
mm
Length attachment end
L1
285
mm
Distance from attachment end face to centre line of spherical seat diameter
A2
100
mm
Flange width
A1
50
mm
Flange width
r
180
mm
Housing radius
A5
225
mm
Width including end cover
t
6
mm
Clearance
A
150
mm
Overall width
H1
350
mm
Distance between bottoms of piloting grooves
B1
121
mm
Width of inner ring
Basic Load Ratings
Cr
229
kN
Basic dynamic load rating
C0r
214
kN
Basic static load rating
Mass
mass
85
kg
Mass approx.
