NSK CM-UCFC218D1
Round Flanged Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
CM-UCFC218D1
Included products
Bearing
Housing
FC218D1
Housing

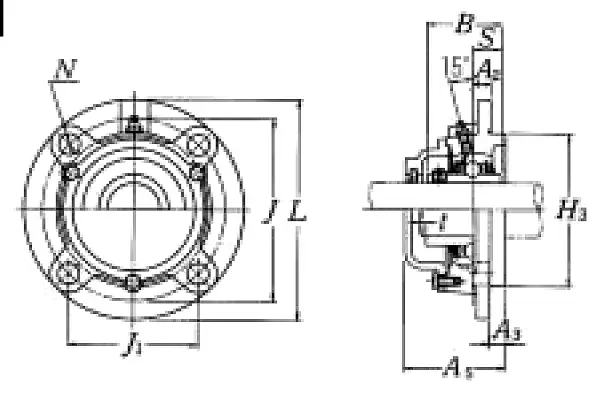

Nominal Dimensions
d
90
mm
Bore diameter
L,H
265
mm
Overall length
H3
190
mm
Outer diameter of Spigot Joint
J
220
mm
Pitch diameter of attachment bolts
J1
155.6
mm
Distance between attachment bolts
N
23
mm
Diameter of attachment bolt hole
A3
18
mm
Height of of Spigot Joint
A2
22
mm
Flange width
A1
50
mm
Flange width
A5
122
mm
Width including end cover
B,B1,B2
96
mm
Width of inner ring
t
5
mm
Clearance
S
39.7
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M20
Bolt size
Basic Load Ratings
Cr
96
kN
Basic dynamic load rating
C0r
71.5
kN
Basic static load rating
Mass
mass
15
kg
Mass approx.
