NSK CM-UCFL208D1
Oval Flanged Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
CM-UCFL208D1
Included products
Bearing
Housing
FL208D1
Housing

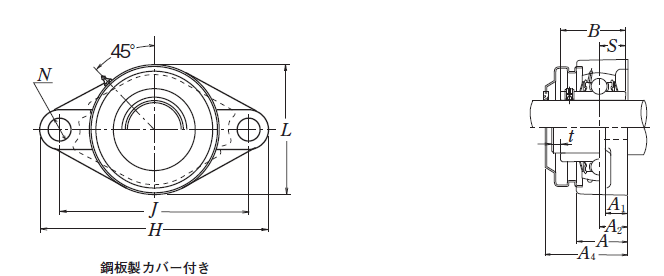

Nominal Dimensions
d
40
mm
Bore diameter
L,L1
106
mm
Overall height
J
144
mm
Distance between attachment bolts
N
16
mm
Diameter of attachment bolt hole
A2
21
mm
Flange width
A1
15
mm
Flange width
A5
66
mm
Width including end cover
B,B1,B2
49.2
mm
Width of inner ring
t
3
mm
Clearance
H
175
mm
Overall length
L2
50
mm
Height of spherical seat centre
S
19
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M14
Bolt size
Basic Load Ratings
Cr
29.1
kN
Basic dynamic load rating
C0r
17.8
kN
Basic static load rating
Mass
mass
1.9
kg
Mass approx.
