NSK CM-UCFL217D1
Oval Flanged Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
CM-UCFL217D1
Included products
Bearing
Housing
FL217D1
Housing

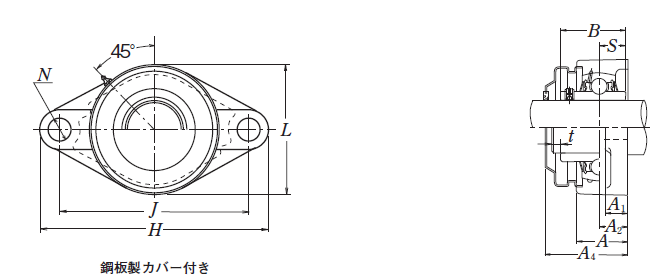

Nominal Dimensions
d
85
mm
Bore diameter
L,L1
192
mm
Overall height
J
248
mm
Distance between attachment bolts
N
25
mm
Diameter of attachment bolt hole
A2
36
mm
Flange width
A1
24
mm
Flange width
A5
114
mm
Width including end cover
B,B1,B2
85.7
mm
Width of inner ring
t
5
mm
Clearance
H
305
mm
Overall length
L2
95
mm
Height of spherical seat centre
S
34.1
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M22
Bolt size
Basic Load Ratings
Cr
83.5
kN
Basic dynamic load rating
C0r
64
kN
Basic static load rating
Mass
mass
10
kg
Mass approx.
