NSK CM-UCFL306D1
Oval Flanged Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
CM-UCFL306D1
Included products
Bearing
Housing
FL306D1
Housing

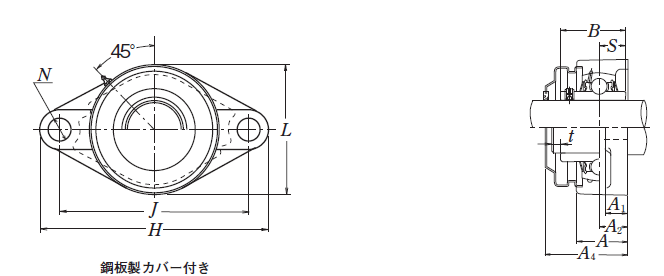

Nominal Dimensions
d
30
mm
Bore diameter
L,L1
101
mm
Overall height
J
134
mm
Distance between attachment bolts
N
23
mm
Diameter of attachment bolt hole
A2
18
mm
Flange width
A1
15
mm
Flange width
A5
60
mm
Width including end cover
B,B1,B2
43
mm
Width of inner ring
t
2
mm
Clearance
H
180
mm
Overall length
L2
45
mm
Height of spherical seat centre
S
17
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M20
Bolt size
Basic Load Ratings
Cr
26.7
kN
Basic dynamic load rating
C0r
15
kN
Basic static load rating
Mass
mass
1.7
kg
Mass approx.
