NSK CM-UCFL318D1
Oval Flanged Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
CM-UCFL318D1
Included products
Bearing
Housing
FL318D1
Housing

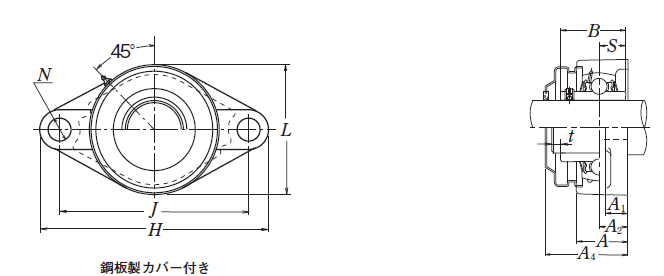

Nominal Dimensions
d
90
mm
Bore diameter
L,L1
247
mm
Overall height
J
315
mm
Distance between attachment bolts
N
38
mm
Diameter of attachment bolt hole
A2
44
mm
Flange width
A1
36
mm
Flange width
A5
129
mm
Width including end cover
B,B1,B2
96
mm
Width of inner ring
t
5
mm
Clearance
H
385
mm
Overall length
L2
117.5
mm
Height of spherical seat centre
S
40
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M33
Bolt size
Basic Load Ratings
Cr
143
kN
Basic dynamic load rating
C0r
107
kN
Basic static load rating
Mass
mass
21
kg
Mass approx.
