NSK CM-UCFLX05D1
Oval Flanged Units
(BRAND)：NSK
(Availability)：In Stock
Designations
CM-UCFLX05D1
Included products
Bearing
Housing
FLX05D1
Housing

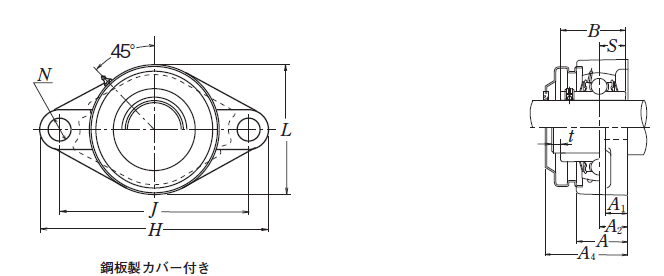

Nominal Dimensions
d
25
mm
Bore diameter
L,L1
86
mm
Overall height
J
117
mm
Distance between attachment bolts
N
12
mm
Diameter of attachment bolt hole
A2
18
mm
Flange width
A1
13
mm
Flange width
A5
56
mm
Width including end cover
B,B1,B2
38.1
mm
Width of inner ring
t
2
mm
Clearance
H
141
mm
Overall length
L2
41.5
mm
Height of spherical seat centre
S
15.9
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M10
Bolt size
Basic Load Ratings
Cr
19.5
kN
Basic dynamic load rating
C0r
11.3
kN
Basic static load rating
Mass
mass
1.2
kg
Mass approx.
