NSK CM-UCFLX08D1
Oval Flanged Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
CM-UCFLX08D1
Included products
Bearing
Housing
FLX08D1
Housing

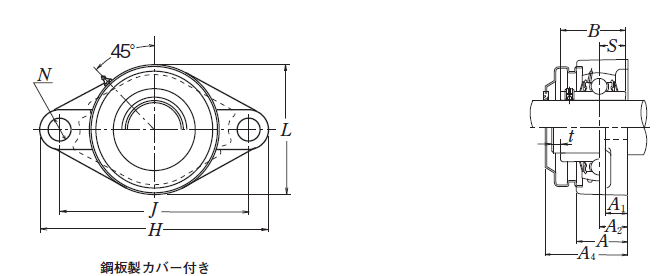

Nominal Dimensions
d
40
mm
Bore diameter
L,L1
114.5
mm
Overall height
J
148
mm
Distance between attachment bolts
N
16
mm
Diameter of attachment bolt hole
A2
22
mm
Flange width
A1
16
mm
Flange width
A5
70
mm
Width including end cover
B,B1,B2
49.2
mm
Width of inner ring
t
3
mm
Clearance
H
179
mm
Overall length
L2
55.5
mm
Height of spherical seat centre
S
19
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M14
Bolt size
Basic Load Ratings
Cr
32.5
kN
Basic dynamic load rating
C0r
20.4
kN
Basic static load rating
Mass
mass
2.4
kg
Mass approx.
