NSK CM-UCP324D1
Pillow Block Bearing Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
CM-UCP324D1
Included products
Bearing
Housing
P324D1
Housing

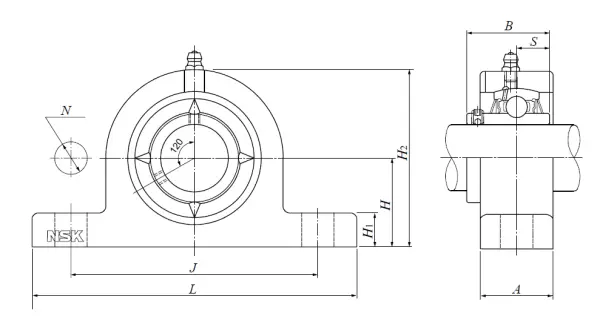

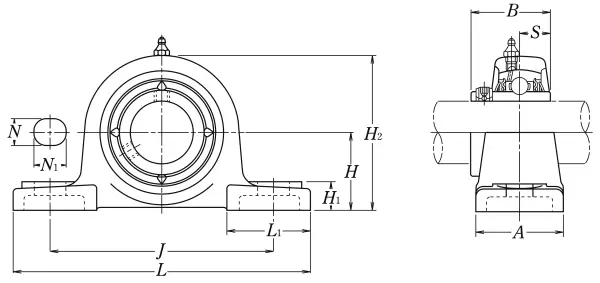

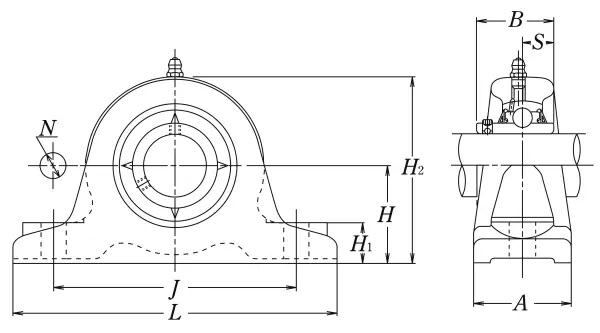

Nominal Dimensions
d
120
mm
Bore diameter
N1
55
mm
Length of attachment bolt hole
L
570
mm
Overall length
H
160
mm
Height of spherical seat centre
H3
335
mm
Overall height
J
450
mm
Distance between attachment bolts
N
40
mm
Diameter of attachment bolt hole
A
140
mm
Base width
A5
215
mm
Width including end cover
t
5
mm
Clearance
H1
65
mm
Distance between bottoms of piloting grooves
B
126
mm
Width of inner ring
S
51
mm
Distance from Opposite side face of locking device to raceway centre
L1
140
mm
Foot width
H2
320
mm
Overall height
Mounting information
G
M33
Bolt size
Basic Load Ratings
Cr
207
kN
Basic dynamic load rating
C0r
185
kN
Basic static load rating
Mass
mass
69
kg
Mass approx.
