NSK CM-UCPX14D1
Pillow Block Bearing Units
(BRAND)：NSK
(Availability)：In Stock
Designations
CM-UCPX14D1
Included products
Bearing
Housing
PX14D1
Housing

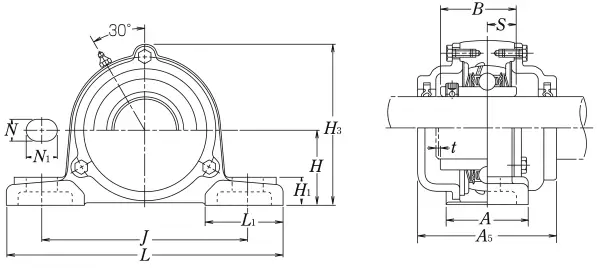

Nominal Dimensions
d
70
mm
Bore diameter
N1
30
mm
Length of attachment bolt hole
L
33
mm
Overall length
H
88.9
mm
Height of spherical seat centre
H3
175
mm
Overall height
J
229
mm
Distance between attachment bolts
N
27
mm
Diameter of attachment bolt hole
A
89
mm
Base width
A5
135
mm
Width including end cover
t
4
mm
Clearance
H1
35
mm
Distance between bottoms of piloting grooves
B4
0.6
mm
Width of inner ring
B1
59.61
mm
Width of inner ring
B
77.8
mm
Width of inner ring
S
33.3
mm
Distance from Opposite side face of locking device to raceway centre
L1
95
mm
Foot width
H2
170
mm
Overall height
Mounting information
G
M22
Bolt size
Basic Load Ratings
Cr
66
kN
Basic dynamic load rating
C0r
49.5
kN
Basic static load rating
Mass
mass
12
kg
Mass approx.
