NSK CM-UKFL206D1
Oval Flanged Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
CM-UKFL206D1
Included products
Bearing
Housing
FL206D1
Housing
Associated products
Adapter sleeve

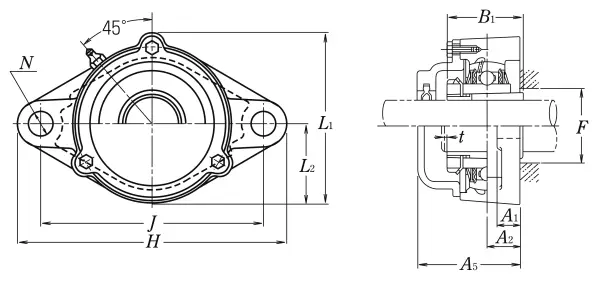

Nominal Dimensions
d
25
mm
Bore diameter
L,L1
85
mm
Overall height
J
117
mm
Distance between attachment bolts
N
18
mm
Diameter of attachment bolt hole
A2
18
mm
Flange width
A1
13
mm
Flange width
A5
56
mm
Width including end cover
B,B1,B2
38
mm
Width of inner ring
F
36
mm
Diameter of housing abutment
t
2
mm
Clearance
H
148
mm
Overall length
L2
40
mm
Height of spherical seat centre
Mounting information
G
M14
Bolt size
Basic Load Ratings
Cr
19.5
kN
Basic dynamic load rating
C0r
11.3
kN
Basic static load rating
