NSK CM-UKFL307D1
Oval Flanged Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
CM-UKFL307D1
Included products
Bearing
Housing
FL307D1
Housing
Associated products
Adapter sleeve

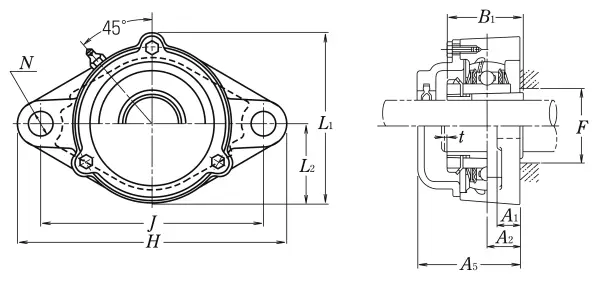

Nominal Dimensions
d
30
mm
Bore diameter
L,L1
110
mm
Overall height
J
141
mm
Distance between attachment bolts
N
20
mm
Diameter of attachment bolt hole
A2
20
mm
Flange width
A1
16
mm
Flange width
A5
68
mm
Width including end cover
B,B1,B2
43
mm
Width of inner ring
t
3
mm
Clearance
H
185
mm
Overall length
L2
50
mm
Height of spherical seat centre
Mounting information
G
M20
Bolt size
Basic Load Ratings
Cr
33.5
kN
Basic dynamic load rating
C0r
19.1
kN
Basic static load rating
