NSK CM-UKFL311D1
Oval Flanged Units
(BRAND)：NSK
(Availability)：In Stock
Designations
CM-UKFL311D1
Included products
Bearing
Housing
FL311D1
Housing
Associated products
Adapter sleeve

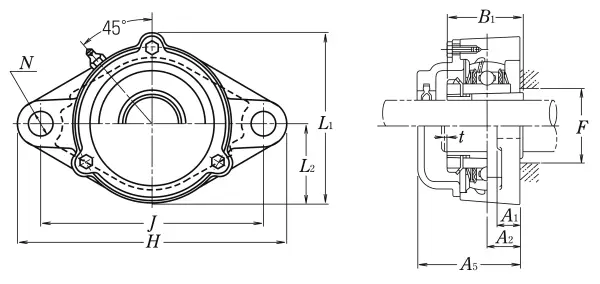

Nominal Dimensions
d
50
mm
Bore diameter
L,L1
162
mm
Overall height
J
198
mm
Distance between attachment bolts
N
30
mm
Diameter of attachment bolt hole
A2
30
mm
Flange width
A1
20
mm
Flange width
A5
92
mm
Width including end cover
B,B1,B2
59
mm
Width of inner ring
t
4
mm
Clearance
H
250
mm
Overall length
L2
75
mm
Height of spherical seat centre
Mounting information
G
M22
Bolt size
Basic Load Ratings
Cr
71.5
kN
Basic dynamic load rating
C0r
45
kN
Basic static load rating
