NSK CM-UKFLX06D1
Oval Flanged Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
CM-UKFLX06D1
Included products
Bearing
Housing
FLX06D1
Housing
Associated products
Adapter sleeve

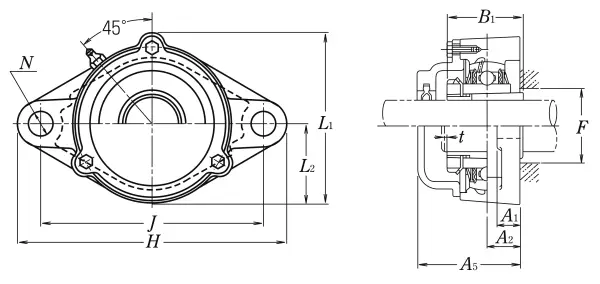

Nominal Dimensions
d
25
mm
Bore diameter
L,L1
98.5
mm
Overall height
J
130
mm
Distance between attachment bolts
N
19
mm
Diameter of attachment bolt hole
A2
19
mm
Flange width
A1
15
mm
Flange width
B,B1,B2
38
mm
Width of inner ring
t
2
mm
Clearance
H
156
mm
Overall length
L2
47.5
mm
Height of spherical seat centre
Mounting information
G
M14
Bolt size
Basic Load Ratings
Cr
25.7
kN
Basic dynamic load rating
C0r
15.3
kN
Basic static load rating
