NSK CM-UKFLX09D1
Oval Flanged Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
CM-UKFLX09D1
Included products
Bearing
Housing
FLX09D1
Housing
Associated products
Adapter sleeve

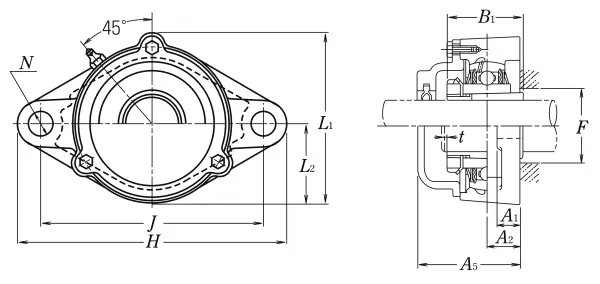

Nominal Dimensions
d
40
mm
Bore diameter
L,L1
119.5
mm
Overall height
J
157
mm
Distance between attachment bolts
N
23
mm
Diameter of attachment bolt hole
A2
23
mm
Flange width
A1
16
mm
Flange width
B,B1,B2
50
mm
Width of inner ring
F
52
mm
Diameter of housing abutment
t
3
mm
Clearance
H
189
mm
Overall length
L2
58
mm
Height of spherical seat centre
Mounting information
G
M14
Bolt size
Basic Load Ratings
Cr
35
kN
Basic dynamic load rating
C0r
23.2
kN
Basic static load rating
