NSK CM-UKP205D1
Pillow Block Bearing Units
(BRAND)：NSK
(Availability)：In Stock
Designations
CM-UKP205D1
Included products
Bearing
Housing
P205D1
Housing
Associated products
Adapter sleeve

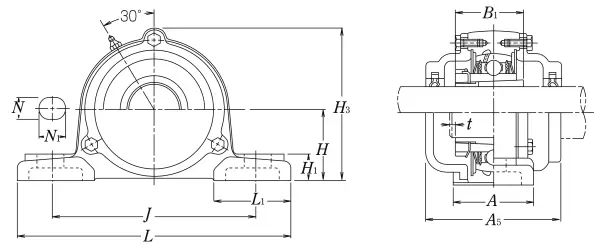

Nominal Dimensions
d
20
mm
Bore diameter
N1
16
mm
Length of attachment bolt hole
L
140
mm
Overall length
H
36.5
mm
Height of spherical seat centre
H3
76
mm
Overall height
J
105
mm
Distance between attachment bolts
N
13
mm
Diameter of attachment bolt hole
A
38
mm
Base width
A5
70
mm
Width including end cover
t
2
mm
Clearance
H1
15
mm
Distance between bottoms of piloting grooves
B1
35
mm
Width of inner ring
L1
42
mm
Foot width
Mounting information
G
M10
Bolt size
Basic Load Ratings
Cr
14
kN
Basic dynamic load rating
C0r
7.85
kN
Basic static load rating
