NSK CM-UKP317D1
Pillow Block Bearing Units
(BRAND)：NSK
(Availability)：In Stock
Designations
CM-UKP317D1
Included products
Bearing
Housing
P317D1
Housing
Associated products
Adapter sleeve

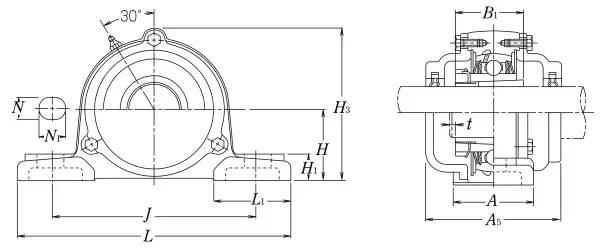

Nominal Dimensions
d
75
mm
Bore diameter
N1
45
mm
Length of attachment bolt hole
L
420
mm
Overall length
H
112
mm
Height of spherical seat centre
H3
235
mm
Overall height
J
320
mm
Distance between attachment bolts
N
33
mm
Diameter of attachment bolt hole
A
110
mm
Base width
A5
170
mm
Width including end cover
t
5
mm
Clearance
H1
40
mm
Distance between bottoms of piloting grooves
B1
82
mm
Width of inner ring
L1
120
mm
Foot width
H2
220
mm
Overall height
Mounting information
G
M27
Bolt size
Basic Load Ratings
Cr
133
kN
Basic dynamic load rating
C0r
97
kN
Basic static load rating
