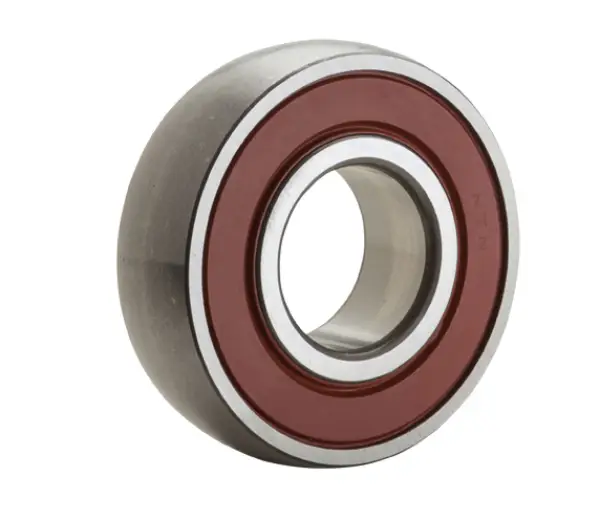

NSK CS201LLU
Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
CS201LLU
Included products
Bearing

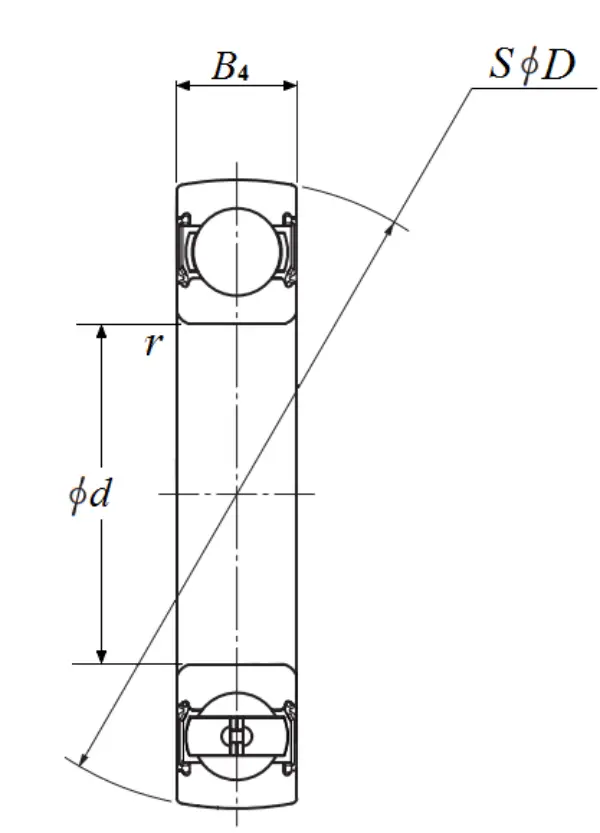

Nominal Dimensions
d
12
mm
Bore diameter
D
32
mm
Outside diameter
B,B4
10
mm
Width of inner ring
r(min.)
0.6
mm
Chamfer dimension
Basic Load Ratings
Cr
6.1
kN
Basic dynamic load rating
C0r
2.75
kN
Basic static load rating
Mass
Mass approx.
0.04
kg
Mass approx.
