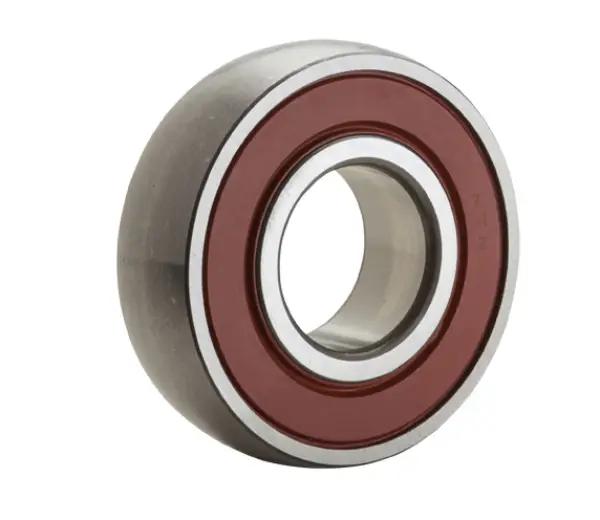

NSK CS205LLU
Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
CS205LLU
Included products
Bearing

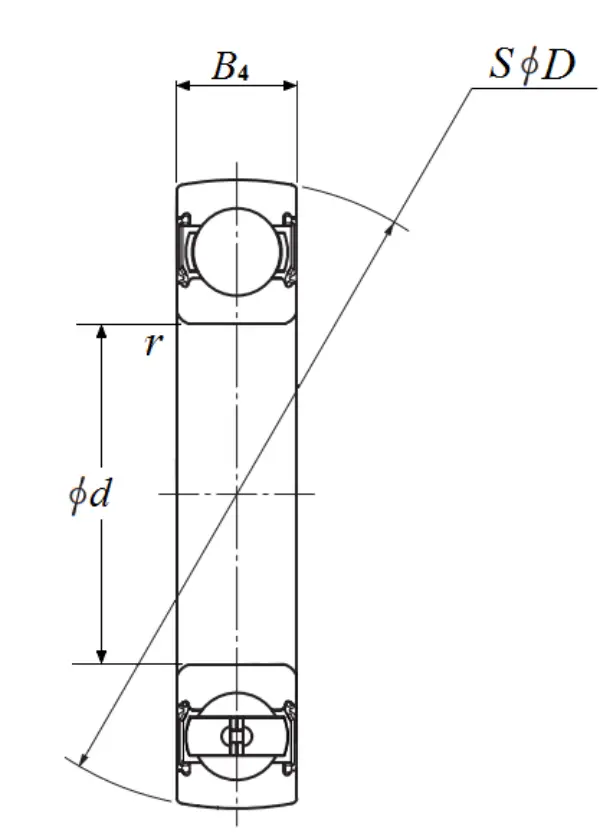

Nominal Dimensions
d
25
mm
Bore diameter
D
52
mm
Outside diameter
B,B4
15
mm
Width of inner ring
r(min.)
1
mm
Chamfer dimension
Basic Load Ratings
Cr
14
kN
Basic dynamic load rating
C0r
7.85
kN
Basic static load rating
Mass
Mass approx.
0.13
kg
Mass approx.
