NSK CSFB205LLU
Oval Flanged Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
CSFB205LLU
Included products
Bearing
Housing
FB205
Housing

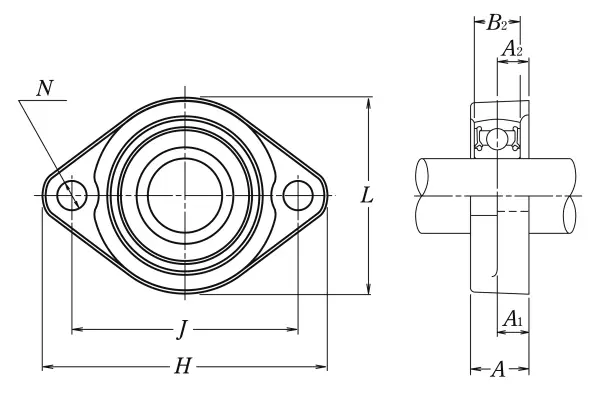

Nominal Dimensions
d
25
mm
Bore diameter
L,L1
64
mm
Overall height
J
76
mm
Distance between attachment bolts
N
10
mm
Diameter of attachment bolt hole
A2
11
mm
Flange width
A1
11
mm
Flange width
A
20
mm
Base width
B,B1,B2
15
mm
Width of inner ring
H
95
mm
Overall length
S
7.5
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M8
Bolt size
Basic Load Ratings
Cr
14
kN
Basic dynamic load rating
C0r
7.85
kN
Basic static load rating
Mass
mass
0.3
kg
Mass approx.
