NSK CSFB206LLU
Oval Flanged Units
(BRAND)：NSK
(Availability)：In Stock
Designations
CSFB206LLU
Included products
Bearing
Housing
FB206
Housing

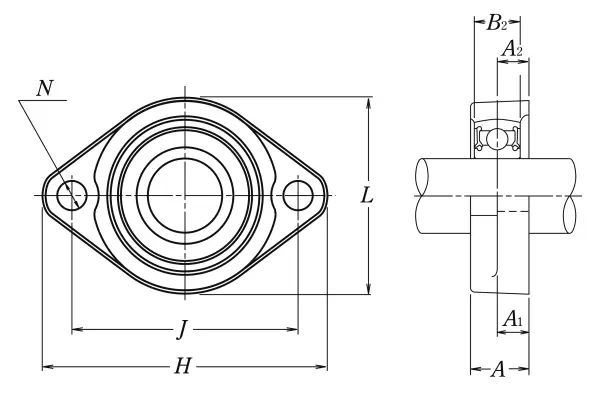

Nominal Dimensions
d
30
mm
Bore diameter
L,L1
76
mm
Overall height
J
90.5
mm
Distance between attachment bolts
N
12
mm
Diameter of attachment bolt hole
A2
12
mm
Flange width
A1
12
mm
Flange width
A
22.5
mm
Base width
B,B1,B2
16
mm
Width of inner ring
H
113
mm
Overall length
S
8
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M10
Bolt size
Basic Load Ratings
Cr
19.5
kN
Basic dynamic load rating
C0r
11.3
kN
Basic static load rating
Mass
mass
0.5
kg
Mass approx.
