NSK CSPB206LLU
Pillow Block Bearing Units
(BRAND)：NSK
(Availability)：In Stock
Designations
CSPB206LLU
Included products
Bearing
Housing
PB206
Housing

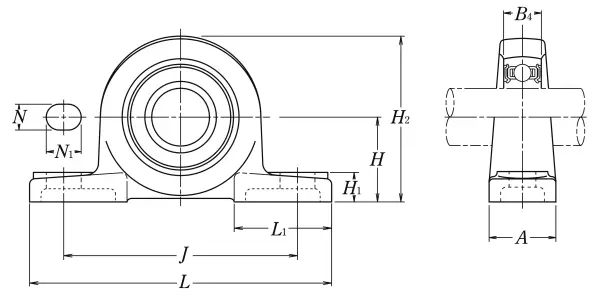

Nominal Dimensions
d
30
mm
Bore diameter
N1
21
mm
Length of attachment bolt hole
L
156
mm
Overall length
H
42.9
mm
Height of spherical seat centre
J
120
mm
Distance between attachment bolts
N
14
mm
Diameter of attachment bolt hole
A
33
mm
Base width
H1
14
mm
Distance between bottoms of piloting grooves
B4
16
mm
Width of inner ring
L1
52
mm
Foot width
H2
83
mm
Overall height
Mounting information
G
M12
Bolt size
Basic Load Ratings
Cr
19.5
kN
Basic dynamic load rating
C0r
11.3
kN
Basic static load rating
Mass
mass
0.9
kg
Mass approx.
