NSK CSPB207LLU
Pillow Block Bearing Units
(BRAND)：NSK
(Availability)：In Stock
Designations
CSPB207LLU
Included products
Bearing
Housing
PB207
Housing

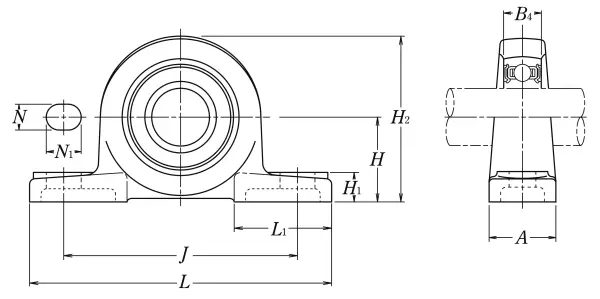

Nominal Dimensions
d
35
mm
Bore diameter
N1
21
mm
Length of attachment bolt hole
L
165
mm
Overall length
H
47.6
mm
Height of spherical seat centre
J
127
mm
Distance between attachment bolts
N
14
mm
Diameter of attachment bolt hole
A
35
mm
Base width
H1
16
mm
Distance between bottoms of piloting grooves
B4
17
mm
Width of inner ring
L1
52
mm
Foot width
H2
93
mm
Overall height
Mounting information
G
M12
Bolt size
Basic Load Ratings
Cr
25.7
kN
Basic dynamic load rating
C0r
15.3
kN
Basic static load rating
Mass
mass
1.1
kg
Mass approx.
