NSK F-UC205D1/LP99
Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
F-UC205D1/LP99
Included products
Bearing

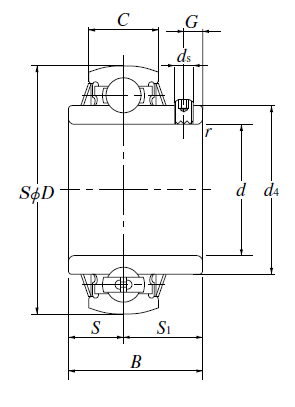

Nominal Dimensions
d
25
mm
Bore diameter
D
52
mm
Outside diameter
B,B4
34.1
mm
Width of inner ring
C
17
mm
Outer ring width
r(min.)
1
mm
Chamfer dimension
S1
19.8
mm
Distance from locking device side face to raceway centre
G
5
mm
Distance face to thread centre
ds
M5×0.8
Set screw
d4
33.9
mm
Outside diameter of inner ring
Basic Load Ratings
Cr
10.8
kN
Basic dynamic load rating
C0r
7.85
kN
Basic static load rating
Mass
Mass approx.
0.2
kg
Mass approx.
