NSK F-UCFM205/LP99
Oval Flanged Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
F-UCFM205/LP99
Included products
Bearing
Housing
FM205
Housing

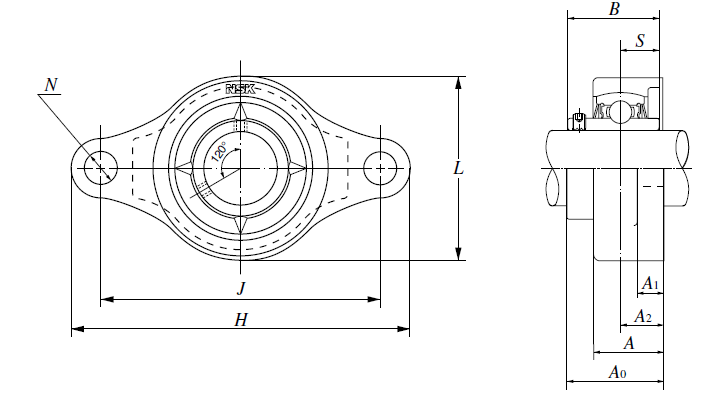

Nominal Dimensions
d
25
mm
Bore diameter
L,L1
68
mm
Overall height
H
127
mm
Height of spherical seat centre
J
99
mm
Distance between attachment bolts
N
16
mm
Diameter of attachment bolt hole
A2
16
mm
Flange width
A1
10
mm
Flange width
A
26.5
mm
Base width
A0
35.8
mm
Overall width
B,B1,B2
34.1
mm
Width of inner ring
S
14.3
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M10
Bolt size
Basic Load Ratings
Cr
10.8
kN
Basic dynamic load rating
C0r
7.85
kN
Basic static load rating
Mass
mass
0.6
kg
Mass approx.
