NSK F-UCFM208/LP99
Oval Flanged Units
(BRAND)：NSK
(Availability)：In Stock
Designations
F-UCFM208/LP99
Included products
Bearing
Housing
FM208
Housing

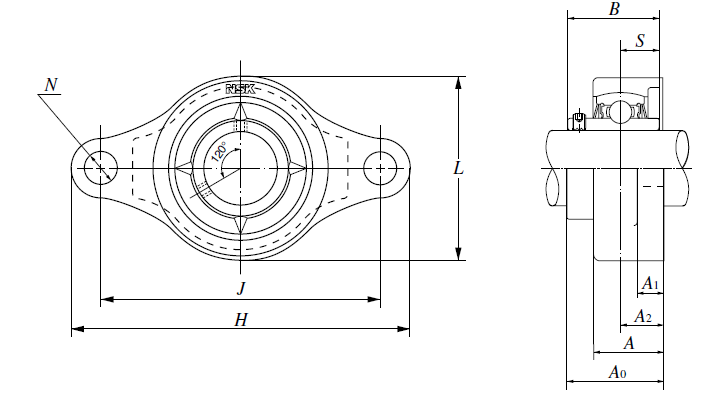

Nominal Dimensions
d
40
mm
Bore diameter
L,L1
100
mm
Overall height
H
172
mm
Height of spherical seat centre
J
144
mm
Distance between attachment bolts
N
16
mm
Diameter of attachment bolt hole
A2
21
mm
Flange width
A1
12
mm
Flange width
A
35
mm
Base width
A0
51.2
mm
Overall width
B,B1,B2
49.2
mm
Width of inner ring
S
19
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M14
Bolt size
Basic Load Ratings
Cr
22.4
kN
Basic dynamic load rating
C0r
17.8
kN
Basic static load rating
Mass
mass
1.6
kg
Mass approx.
