NSK F-UCPM204/LP99
Pillow Block Bearing Units
(BRAND)：NSK
(Availability)：In Stock
Designations
F-UCPM204/LP99
Included products
Bearing
Housing
PM204
Housing

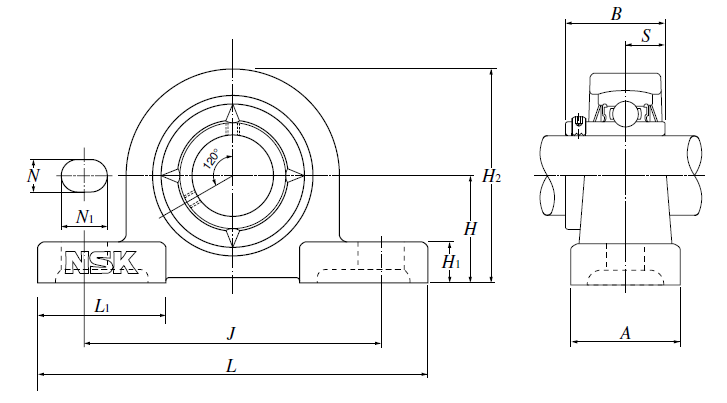

Nominal Dimensions
d
20
mm
Bore diameter
N1
14
mm
Length of attachment bolt hole
L
120
mm
Overall length
H
33.3
mm
Height of spherical seat centre
J
95
mm
Distance between attachment bolts
N
12
mm
Diameter of attachment bolt hole
A
30
mm
Base width
H1
11
mm
Distance between bottoms of piloting grooves
B
31
mm
Width of inner ring
S
12.7
mm
Distance from Opposite side face of locking device to raceway centre
H2
64
mm
Overall height
Mounting information
G
M10
Bolt size
Basic Load Ratings
Cr
9.9
kN
Basic dynamic load rating
C0r
6.65
kN
Basic static load rating
Mass
mass
0.5
kg
Mass approx.
