NSK H3288
Adapter
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
H3288
Associated products
Adapter Sleeve
A3288
Adapter Sleeve
Nut
Stopper

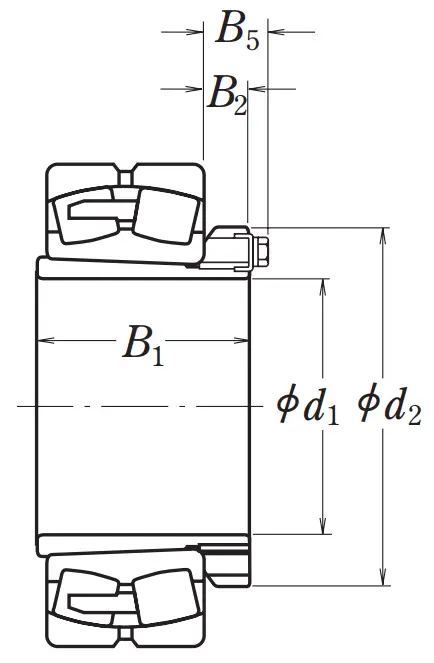

Dimensions
d1
410
mm
Shaft diameter
d
440
mm
Nominal bore diameter
B1
361
mm
Width
d2
560
mm
Outside diameter lock nut
B2
70
mm
Width lock nut including lock washer
B5
90
mm
Width lock nut including stopper
Abutment and Fillet Dimensions
A(min.)
99
mm
Internal clearance of outer ring from side face to housing
K(min.)
620
mm
Diameter of housing abutment
de(min.)
469
mm
Diameter of abutment
b(min.)
17
mm
Internal clearance of inner ring from side face to shaft
Mass
Mass
118
kg
Mass (approx.)
