NSK HN88
Nut
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
HN88
Shaft diameter (Reference)
d
400
mm
Shaft diameter (Reference)

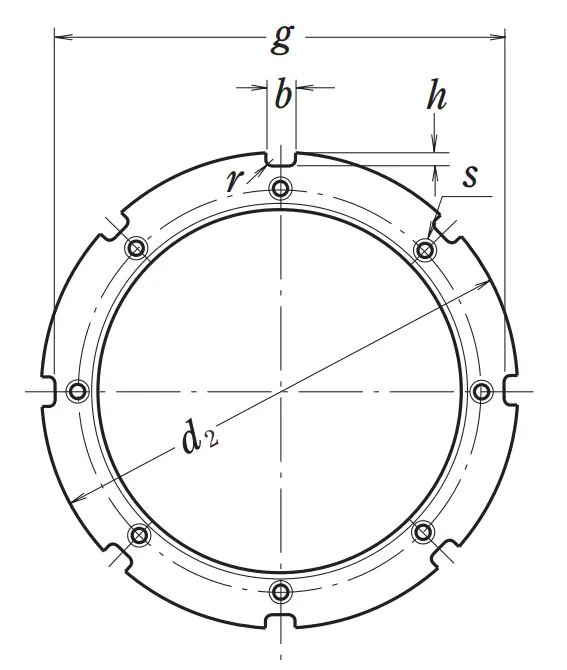

Basic Dimensions
d2
560
mm
Outside diameter lock nut
B
70
mm
Width lock nut
G
Tr440x5
Thread size
d1
510
mm
Diameter locating side face
g
520
mm
Distance between locating slots
b
36
mm
Width locating slot
h
20
mm
Depth locating slot
d3
442.5
mm
Thread diameter
r
1
mm
Locating slot chanfer
Mass
Mass
48.5
kg
Mass (approx.)
