NSK HNL104
Nut
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
HNL104
Shaft diameter (Reference)
d
480
mm
Shaft diameter (Reference)

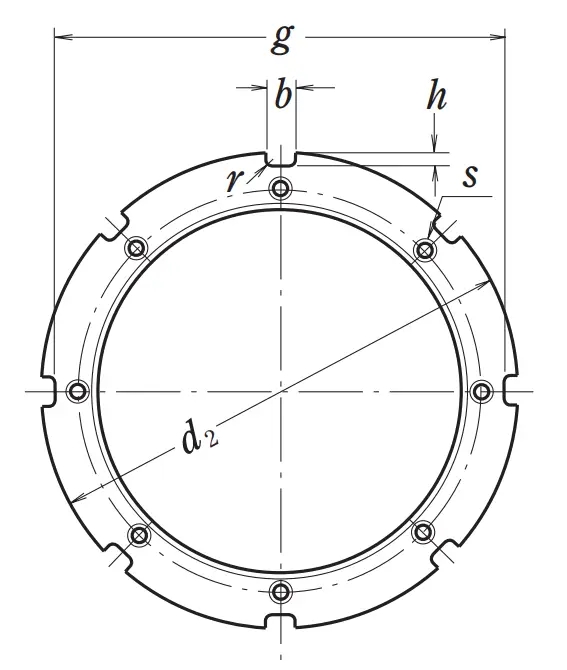

Basic Dimensions
d2
600
mm
Outside diameter lock nut
B
68
mm
Width lock nut
G
Tr520x6
Thread size
d1
570
mm
Diameter locating side face
g
570
mm
Distance between locating slots
b
36
mm
Width locating slot
h
15
mm
Depth locating slot
d3
523
mm
Thread diameter
r
1
mm
Locating slot chanfer
Mass
Mass
37
kg
Mass (approx.)
