NSK HNL86
Nut
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
HNL86
Shaft diameter (Reference)
d
400
mm
Shaft diameter (Reference)

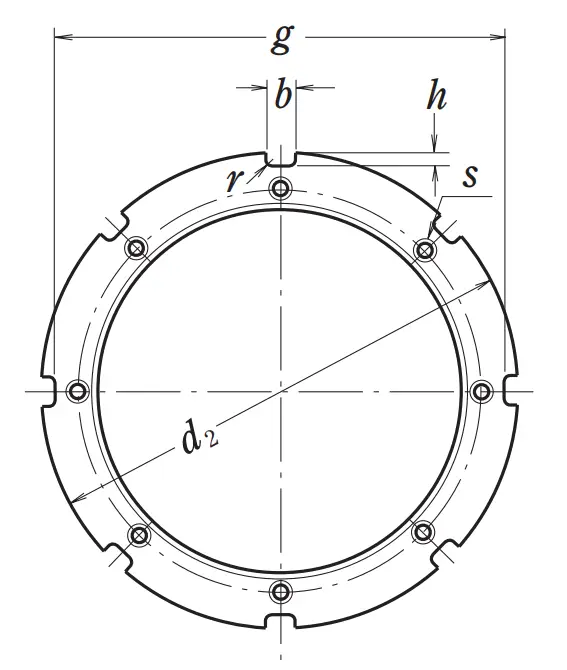

Basic Dimensions
d2
500
mm
Outside diameter lock nut
B
52
mm
Width lock nut
G
Tr430x5
Thread size
d1
472
mm
Diameter locating side face
g
472
mm
Distance between locating slots
b
32
mm
Width locating slot
h
14
mm
Depth locating slot
d3
432.5
mm
Thread diameter
r
1
mm
Locating slot chanfer
Mass
Mass
19.8
kg
Mass (approx.)
