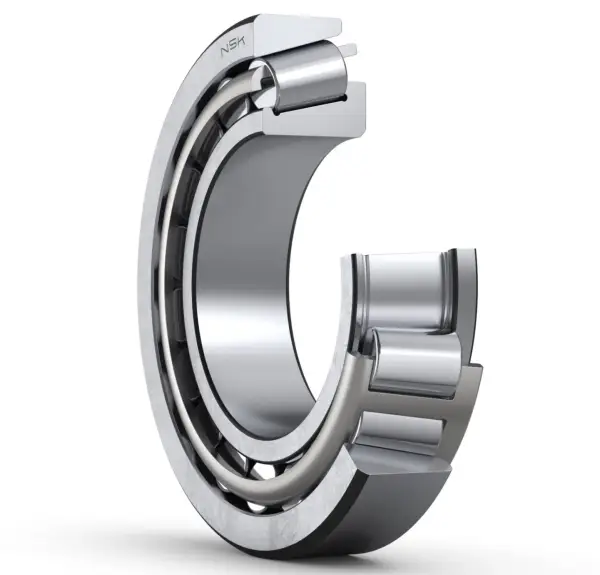

NSK HR32930J
Metric Series Tapered Roller Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
HR32930J
Dimension series
ISO
2DC
ISO355 dimension series approx.

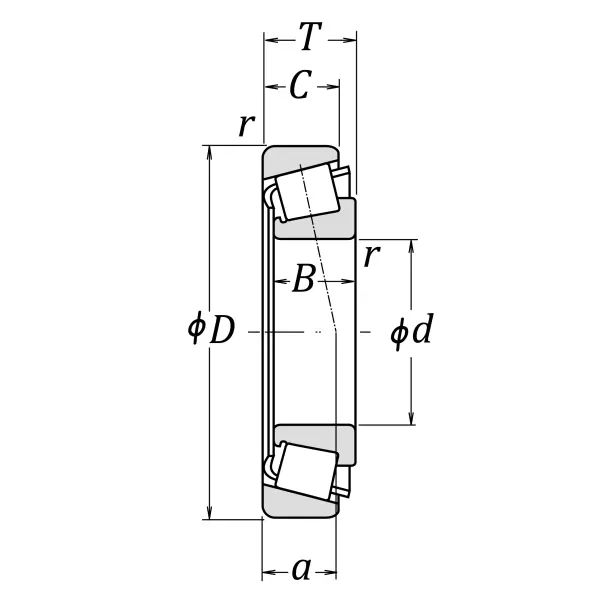

Boundary Dimensions
d
150
mm
Bore diameter
D
210
mm
Outside diameter
T
38
mm
Total width
B
38
mm
Width of inner ring
C
30
mm
Width of outer ring
Cup r (min.)
2
mm
Chamfer dimension of outer ring (Cup)
Cone r (min.)
2.5
mm
Chamfer dimension of inner ring (Cone)
Basic Load Ratings
Cr
345000
N
Basic dynamic load rating
C0r
520000
N
Basic static load rating
Speeds
Grease
1500
min-1
Grease lubrication
Oil (Oil-bath)
2000
min-1
Oil-bath lubrication
a
36.5
mm
Effective load center
