NSK HR33207J
Metric Series Tapered Roller Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
HR33207J
Dimension series
ISO
2DE
ISO355 dimension series approx.

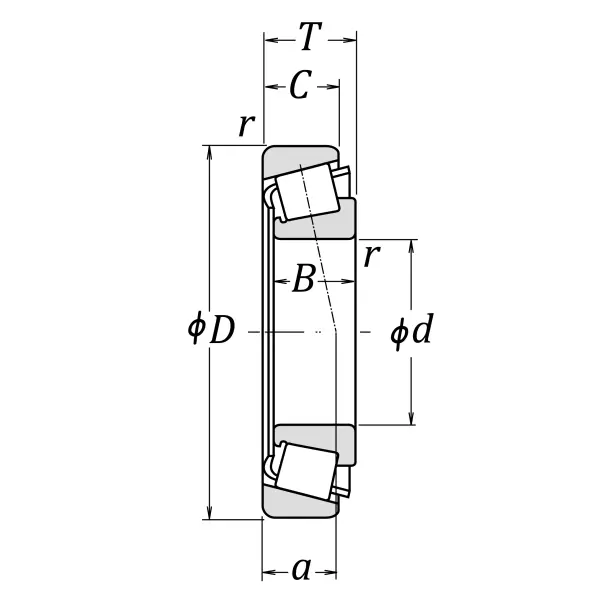

Boundary Dimensions
d
35
mm
Bore diameter
D
72
mm
Outside diameter
T
28
mm
Total width
B
28
mm
Width of inner ring
C
22
mm
Width of outer ring
Cup r (min.)
1.5
mm
Chamfer dimension of outer ring (Cup)
Cone r (min.)
1.5
mm
Chamfer dimension of inner ring (Cone)
Basic Load Ratings
Cr
107000
N
Basic dynamic load rating
C0r
108000
N
Basic static load rating
Speeds
Grease
5300
min-1
Grease lubrication
Oil (Oil-bath)
7100
min-1
Oil-bath lubrication
a
18.3
mm
Effective load center
