NSK N1013RSZTP
Single-Row Cylindrical Roller Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
N1013RSZTP
Boundary Dimensions
d
65
mm
Bore diameter
D
100
mm
Outside diameter
B
18
mm
Width
r(min.)
1.1
mm
Chamfer Dimension
r1(min.)
1
mm
Chamfer Dimension
Basic Load Ratings
Cr
23.6
kN
Basic Dynamic Load Rating
C0r
24.5
kN
Basic Static Load Rating
Speeds
Grease
11000
min-1
Limiting Speed
Oil (Oil-air)
17000
min-1
Limiting Speed
Dimensions
Ew
91
mm
Roller Circumscribed Circle Diameters

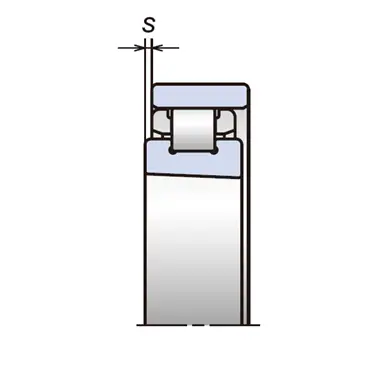

s
1.1
mm

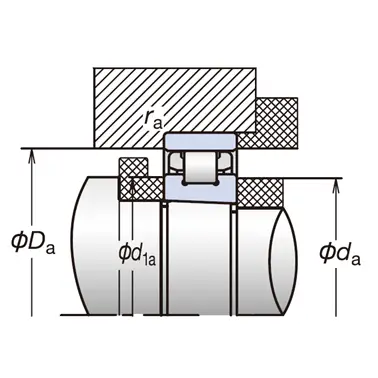

Abutment and Fillet Dimensions
da(min.)
71.5
mm
Diameter of Shaft Abutment
d1a(min.)
73
mm
Diameter of Shaft Abutment
Da(min.)
92
mm
Diameter of Housing Abutment
Da(max.)
95
mm
Diameter of Housing Abutment
ra(max.)
1
mm
Radius of Shaft or Housing Fillet
